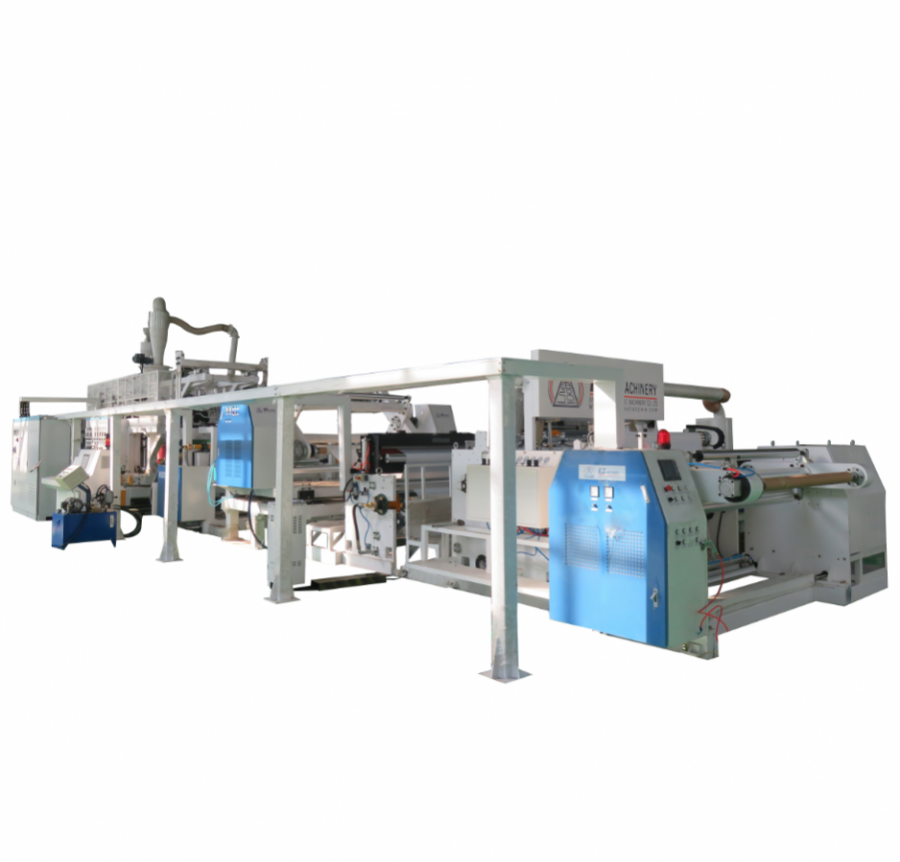

規(guī)格型號 SJLM-CPE-Z
Model SJLM-CPE-Z

2300mm

2700mm

3200mm

螺桿直徑(mm)
Screw Diameter(mm)

90/100/100/90

100/110/110/100

110/125/125/110

長徑比(L/D)
L/D Ratio of Screw

32:1

32:1

32:1

模頭寬度(mm)
Width of Die (mm)

2600

3000

3500

成品寬度(mm)
Width of Film (mm)

2300

2700

3200

成品厚度(mm)
Thickness of Film (mm)

0.02-0.10

0.02-0.10

0.02-0.10

膜層結(jié)構(gòu)
Structure of Film

A/B/C/D

A/B/C/D

A/B/C/D

擠出量(kg/h)
Max. Extrusion Capacity (kg/h)

720

850

1150

機械設(shè)計線速(m/min)
Design Speed (m/min)

180

180

180

總功率(kw)
Total Installed Power (kw)

650

800

1000

外形尺寸(長×寬×高)(m)
Overall Dimensions (m)

20×10×6.5

21×11×6.5

22×12×6.5

重量(T)
Weight (T)

50

60

70
